TVs MOUNTED in a STRUCTURAL CAGE SUSPENDED WITH ALL THREAD RODS TO THE CONCRETE STRUCTURE 18 FT ABOVE THE FLOOR

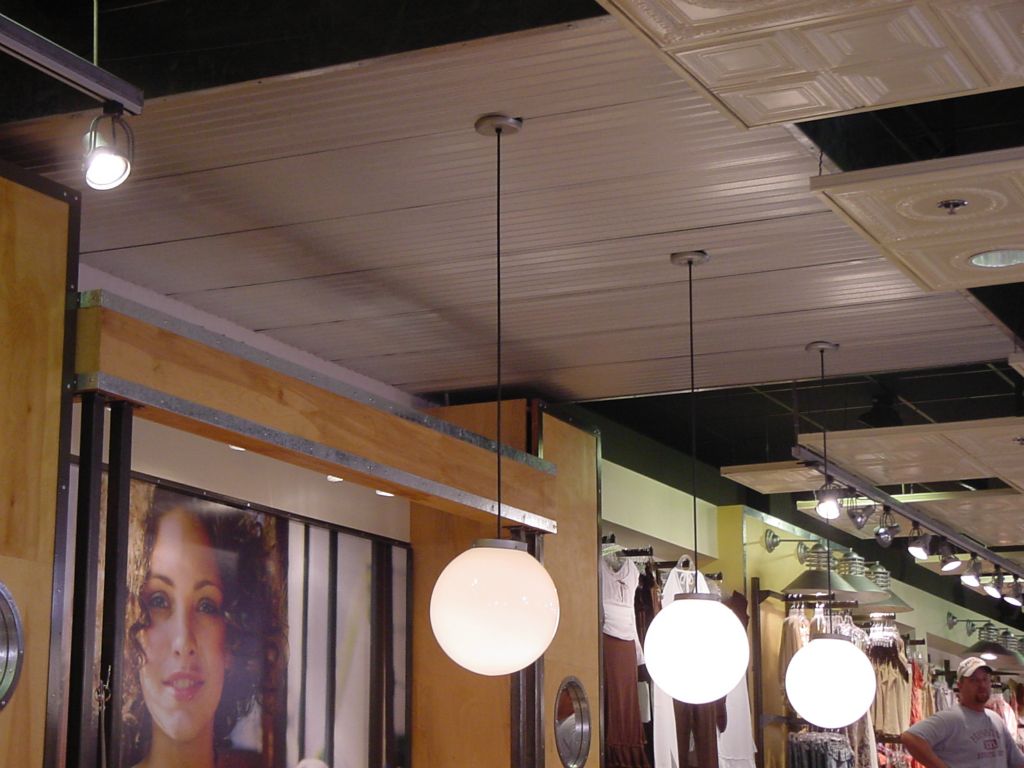

EXISTING CORRUGATED STEEL CEILING PANELS PRIOR TO INSTALLING TVs

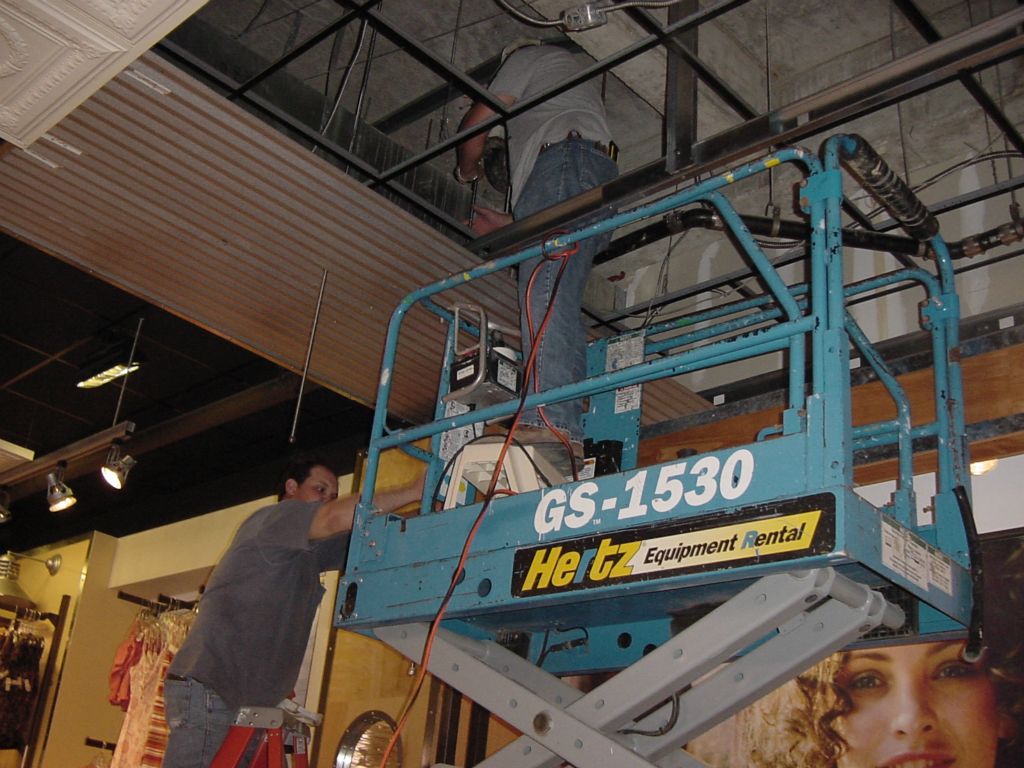

HAMMER DRILLING in CONCRETE STRUCTURE for ANCHORS

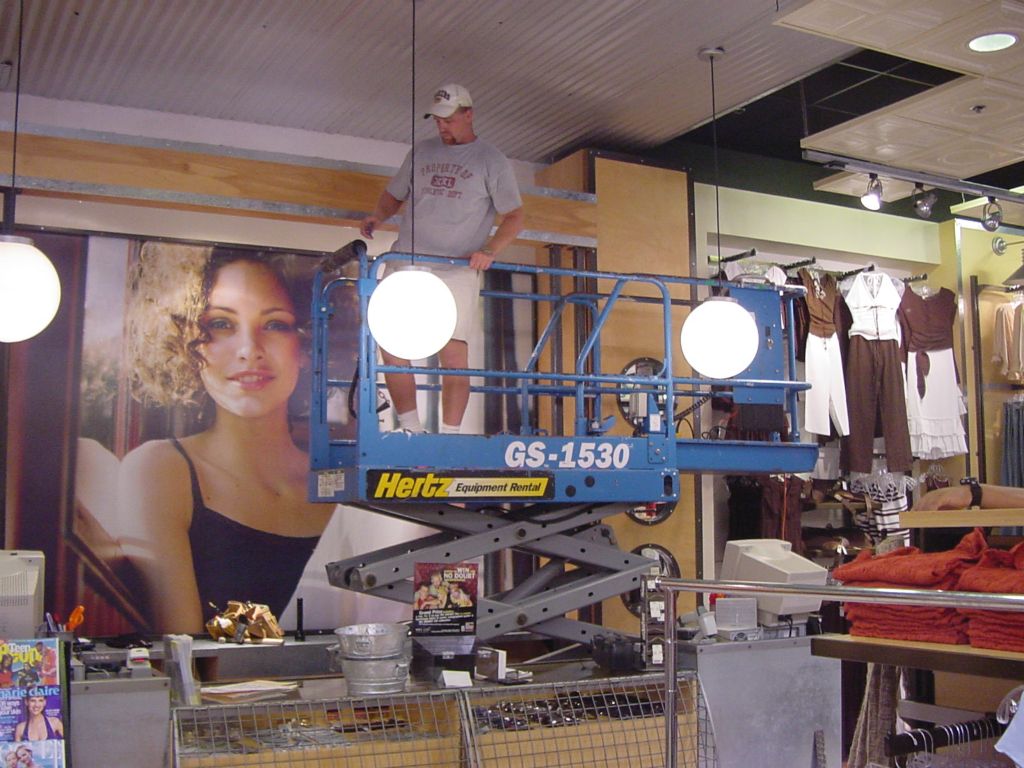

ALL THREAD LAYOUT

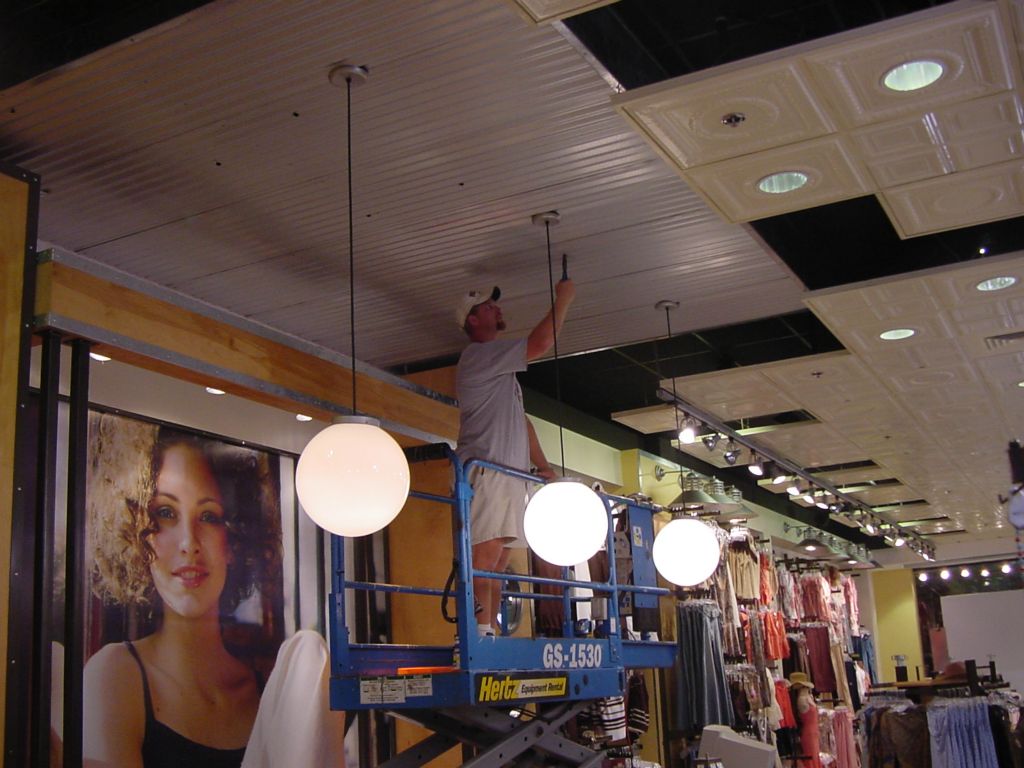

DRILLING FOR THE ALL THREAD RODS

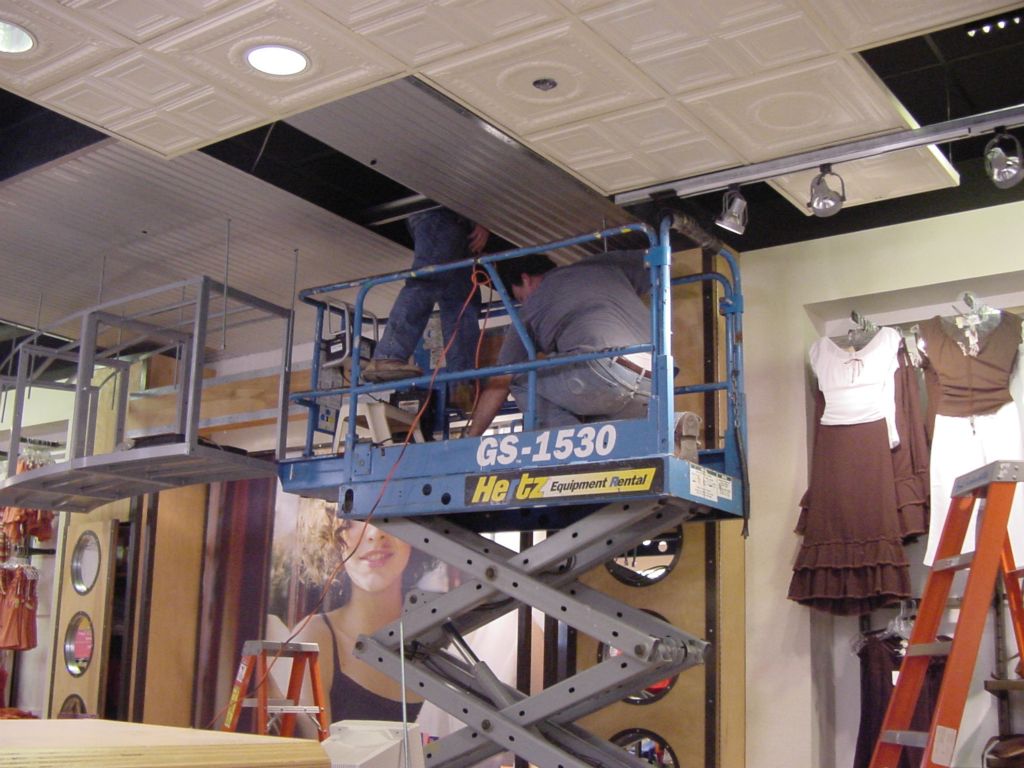

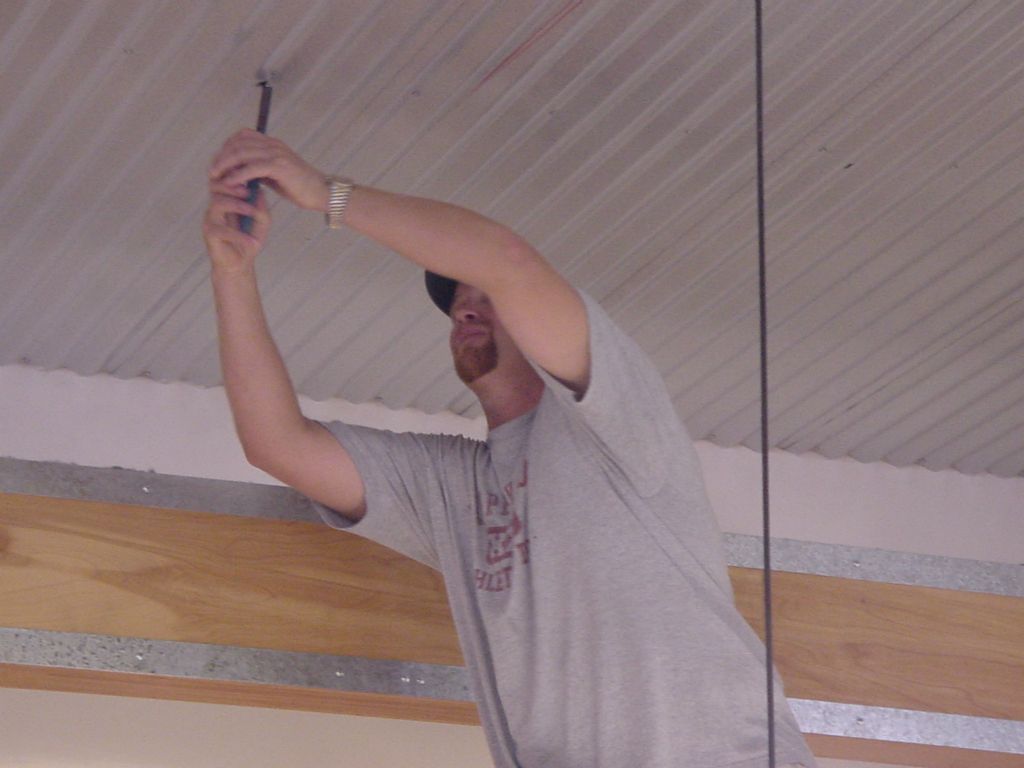

SECURING THE ALL THREAD RODS to the ANCHORS ABOVE

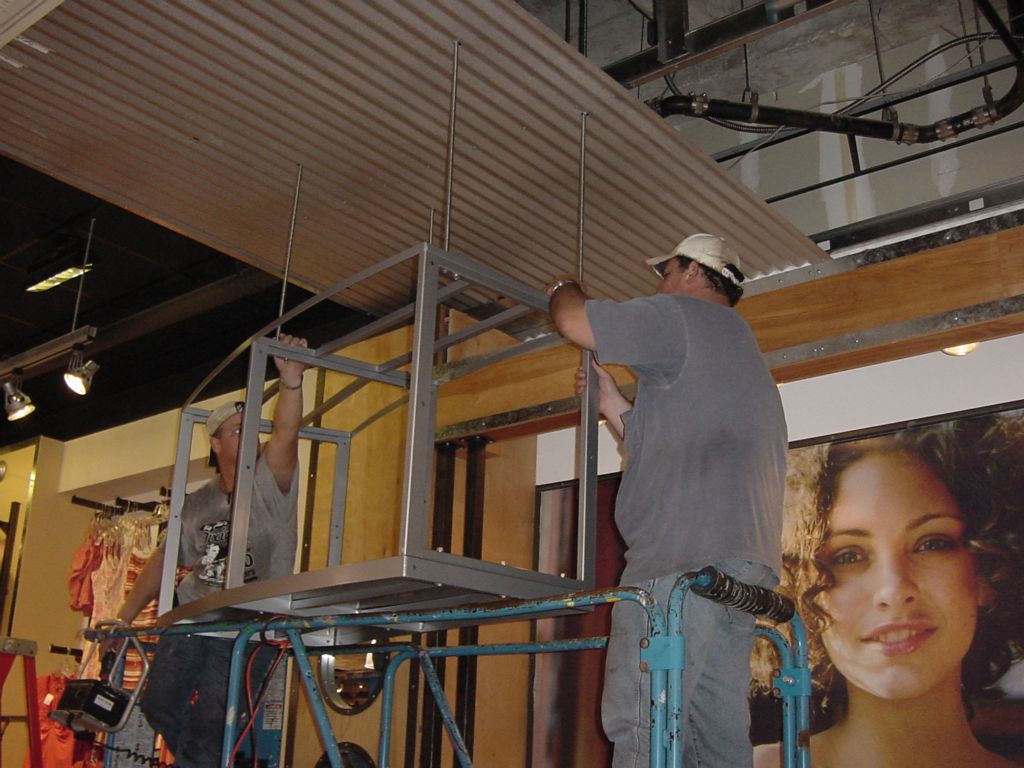

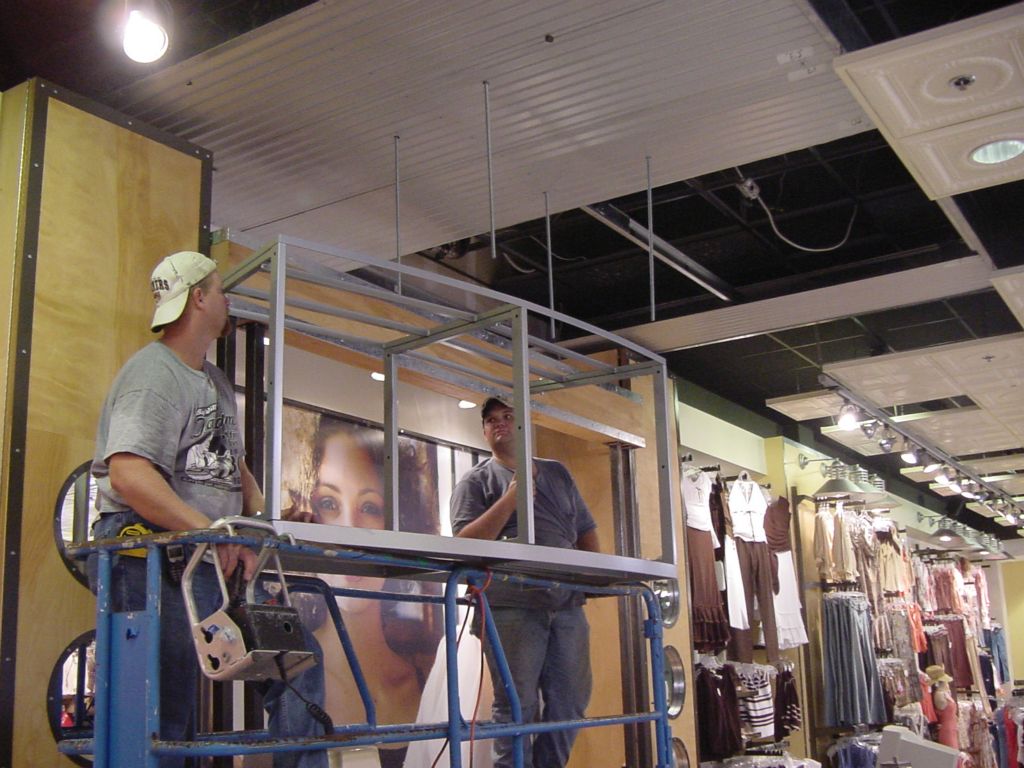

ALIGNING THE STRUCTURAL CAGE WITH THE ALL THREAD RODS

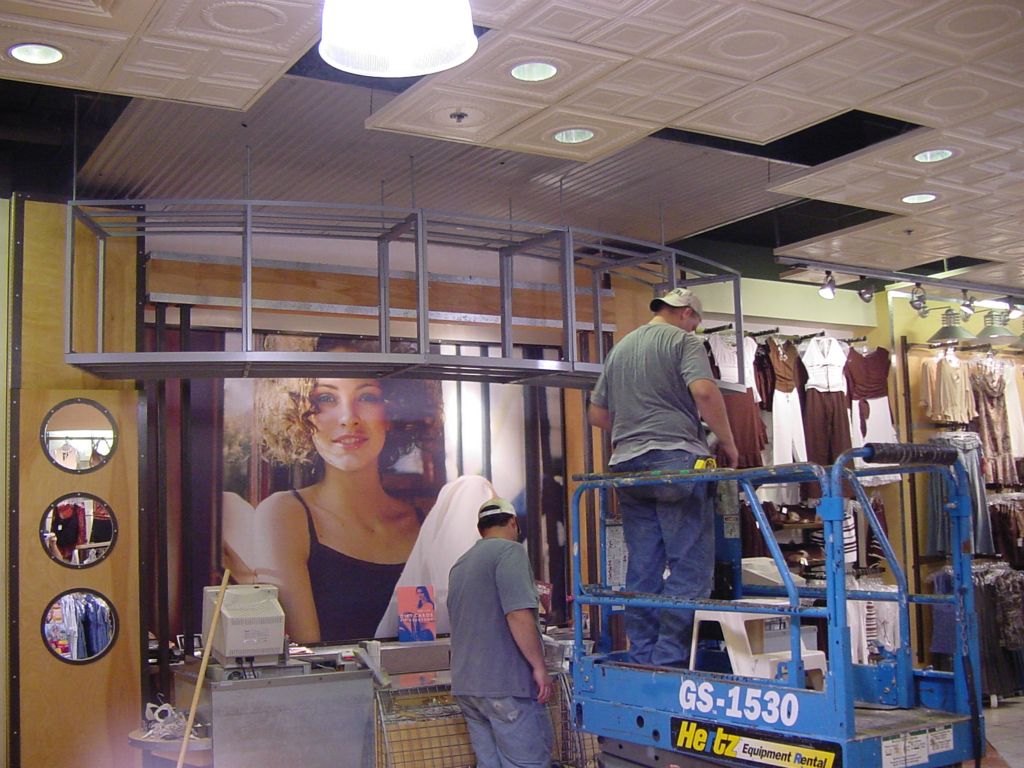

CONNECTING THE CAGE SECTIONS TOGETHER

FINALIZING SUSPENDING THE STRUCTURAL CAGE

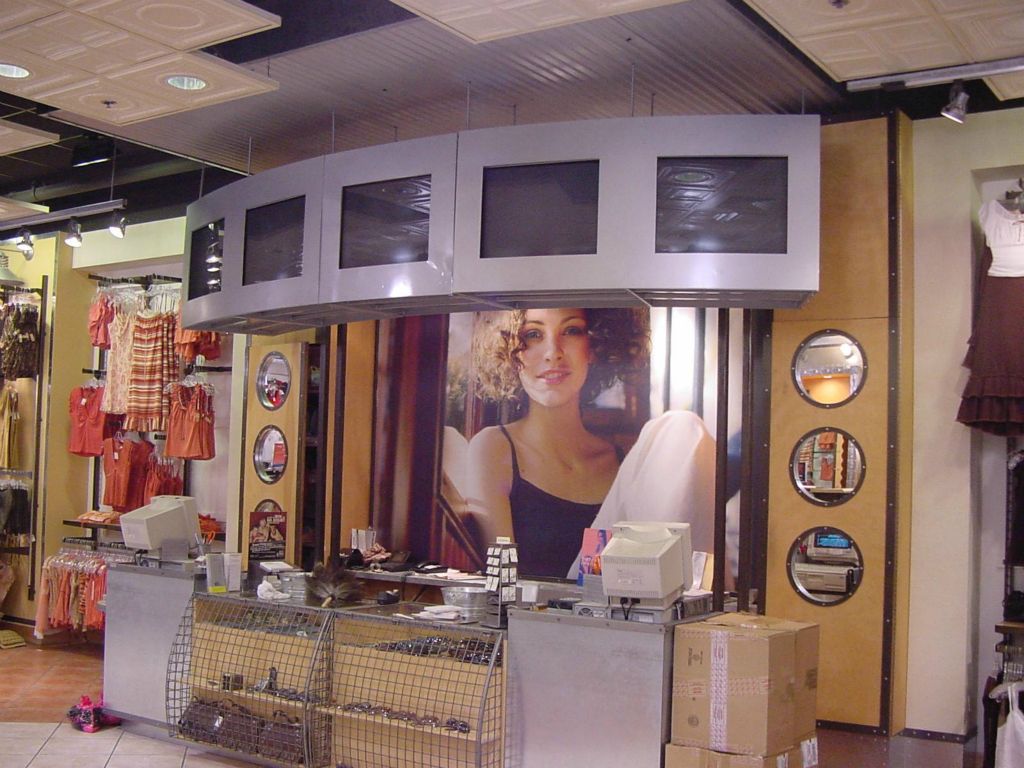

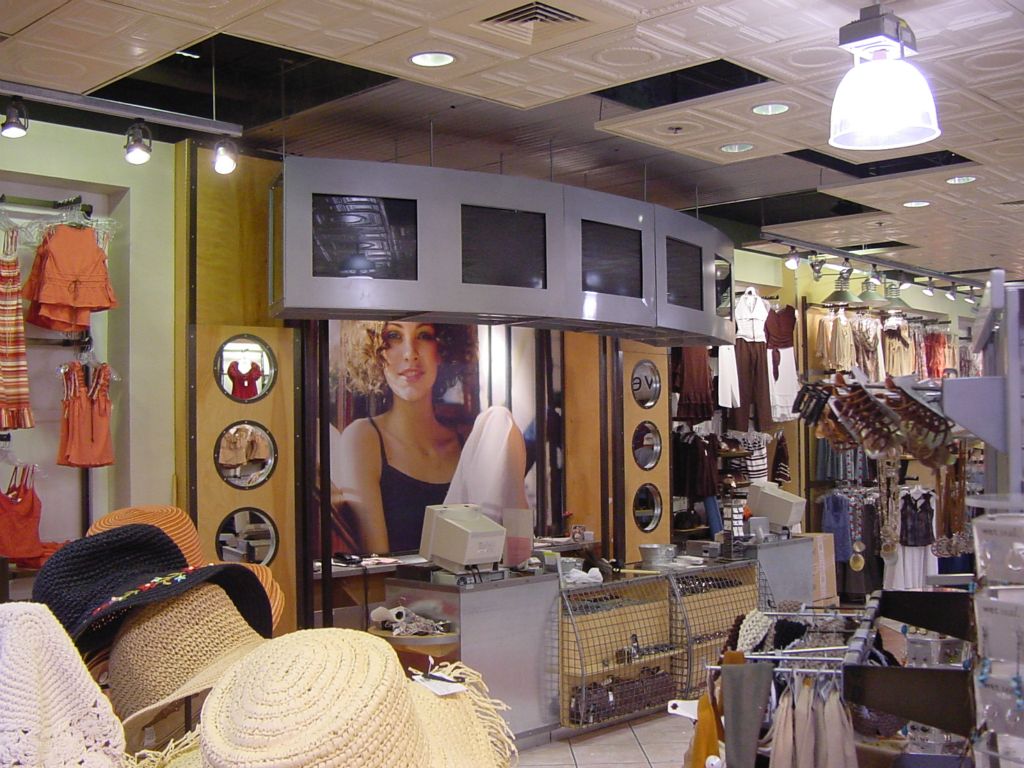

COMPLETED INSTALLATION

RETAIL STORE UPGRADES by E B SMITH

The scope of this project was to suspend a structural steel framework (2 locations in store) below the existing finished steel ceiling. This required reaching the concrete structure 6' above the steel ceiling panels and precisely anchoring all thread rods to support the 1,200 lb. direct pull from the weight of the framing and TV's. This work was performed in one evening from 11:00 pm until 6:00 a.m.
